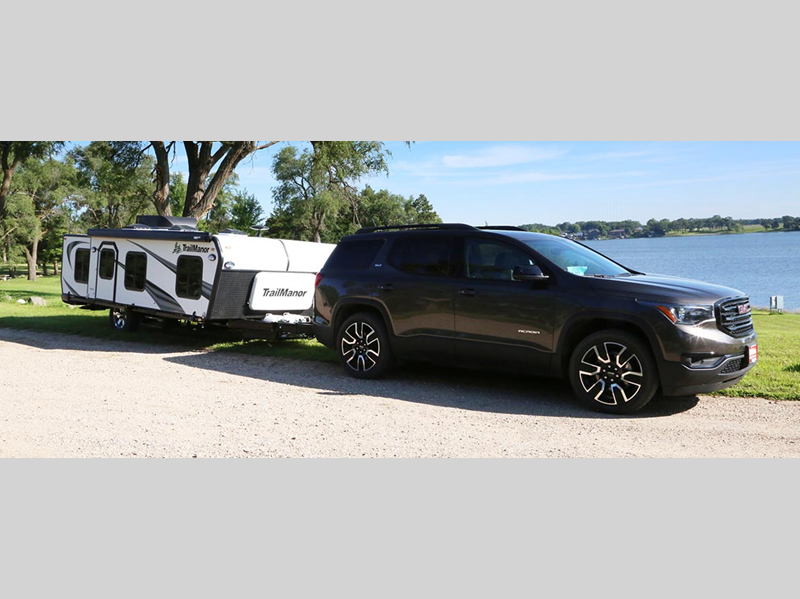

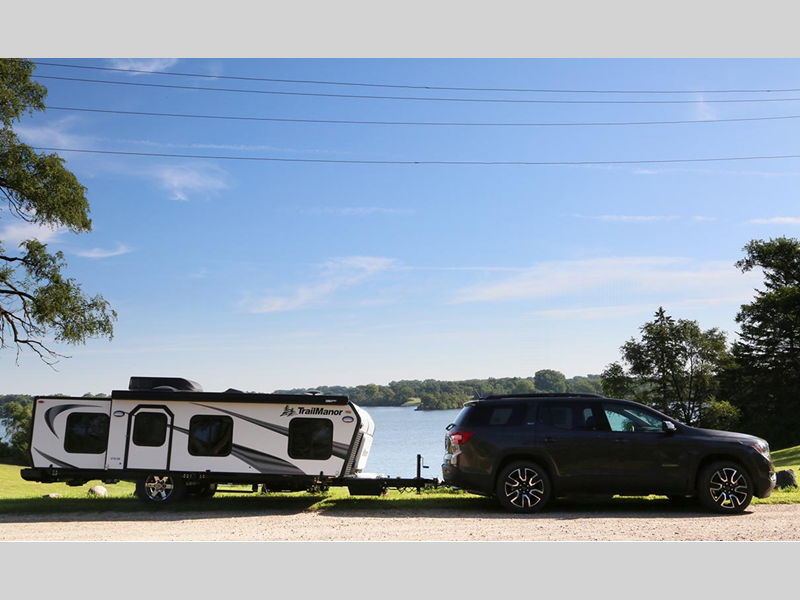

The TrailManor 2720 Series travel trailers offer fuel economy, easy towing with most minivans, crossovers and SUVs, simple and quick setup, and the ability to store the trailer at your home lessening the expense of a storage facility.  And the 2720 Series is the most popular model series for good reason!

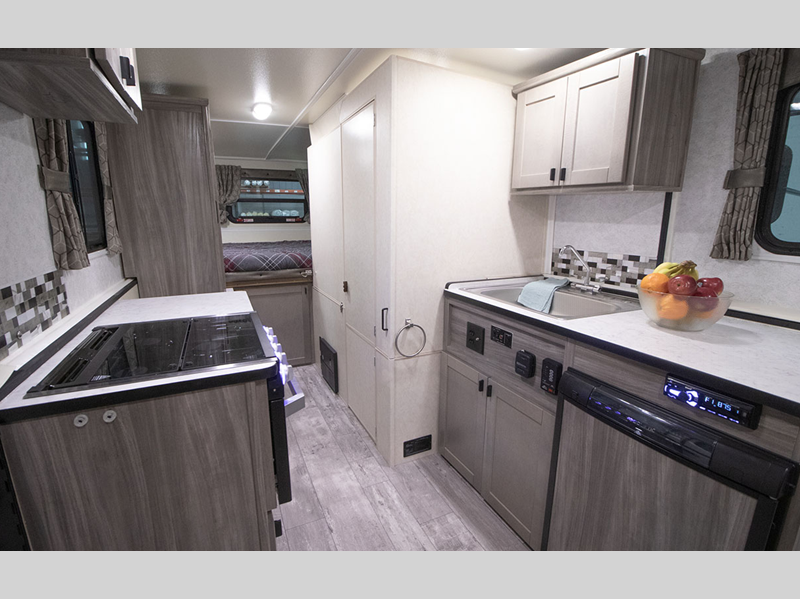

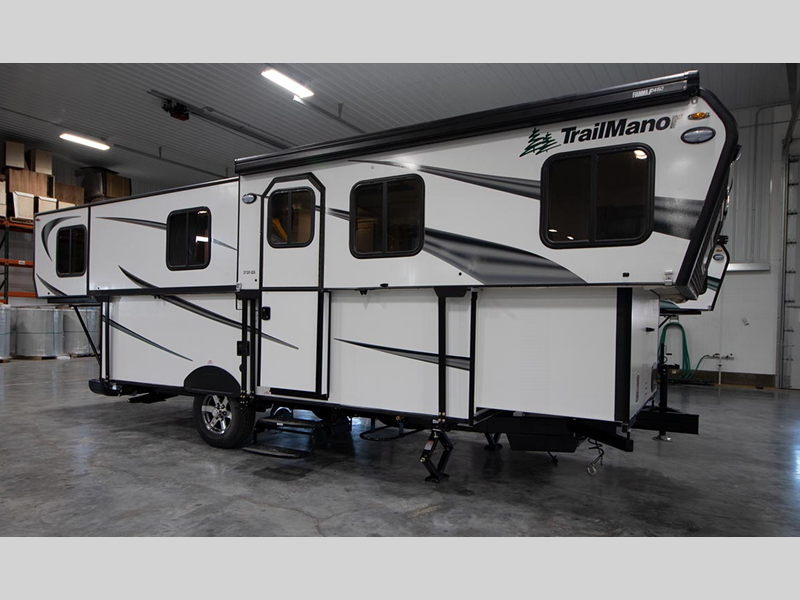

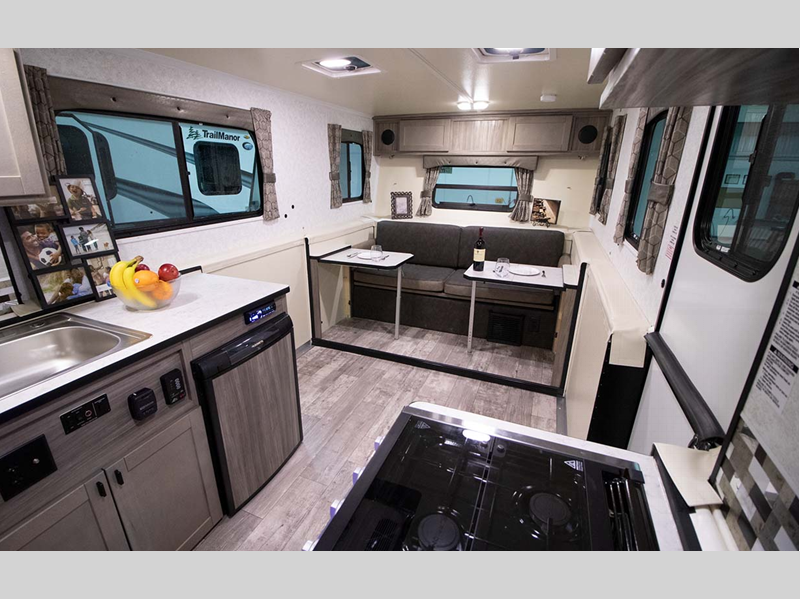

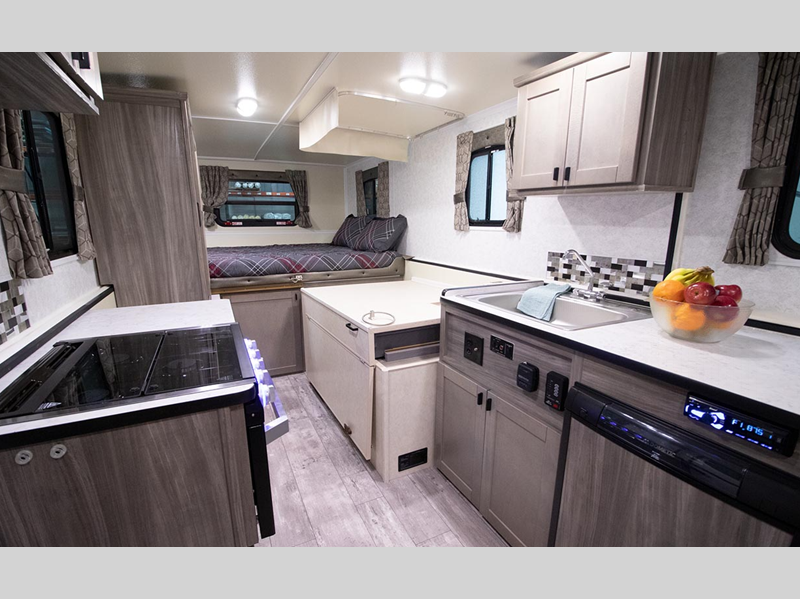

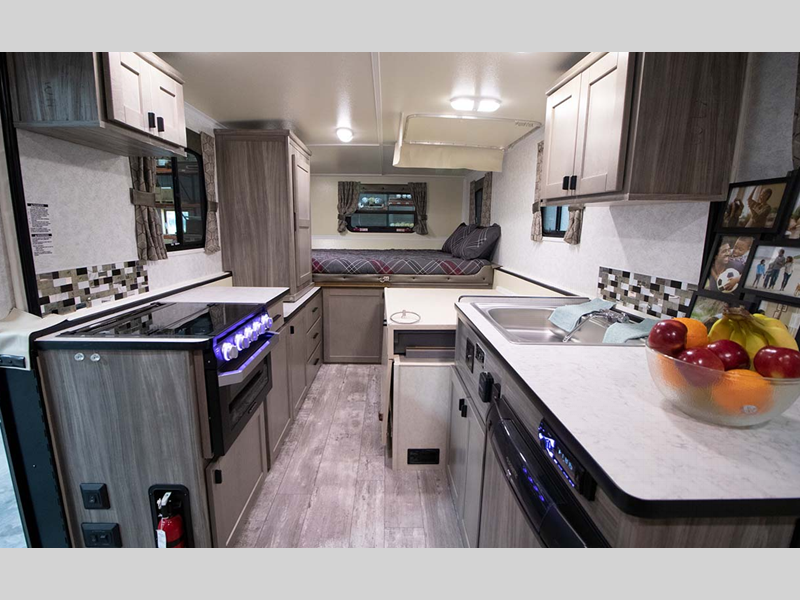

Each model includes a Krystal Kote exterior, walls made of expanded polystyrene laminated with aluminum for strength, rubber torsion axles with independent suspension, a metal underbelly, as well as an outside shower for an added convenience. Inside, you will find a hardwall bathroom with a shower and tub, a full kitchen with marble look countertops, and a power front slide out on select models.



Looking for a trailer that folds down to reduce wind resistance and gas cost, plus is easy to store in a standard size garage, then stop searching.  There is a TrailManor 2720 Series travel trailer floorplan for you!



  • 2720 Series 2720QB

    2720 Series 2720QB Floorplan Image

    TrailManor 2720 Series travel trailer 2720QB highlights: Double Bed Booth ... more about 2720 Series 2720QB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Length 20 ft
    Ext Width 7 ft 11 in
    Ext Height 6 ft 8 in
    Int Height 6 ft 4 in
    Hitch Weight 346 lbs
    Dry Weight 2742 lbs
    Cargo Weight 1333 lbs
    Fresh Water Capacity 20 gals
    Grey Water Capacity 30 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Available Beds Queen, Double
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    Cargo Deck Size 0 ft
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
  • 2720 Series 2720QD

    2720 Series 2720QD Floorplan Image

    TrailManor 2720 Series travel trailer 2720QD highlights: Dinette Slide Wardrobe ... more about 2720 Series 2720QD

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 20 ft
    Ext Width 7 ft 11 in
    Ext Height 6 ft 8 in
    Int Height 6 ft 4 in
    Hitch Weight 392 lbs
    Dry Weight 2865 lbs
    Cargo Weight 1210 lbs
    Fresh Water Capacity 20 gals
    Grey Water Capacity 30 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Available Beds Queen
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    Cargo Deck Size 0 ft
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
  • 2720 Series 2720QS

    2720 Series 2720QS Floorplan Image

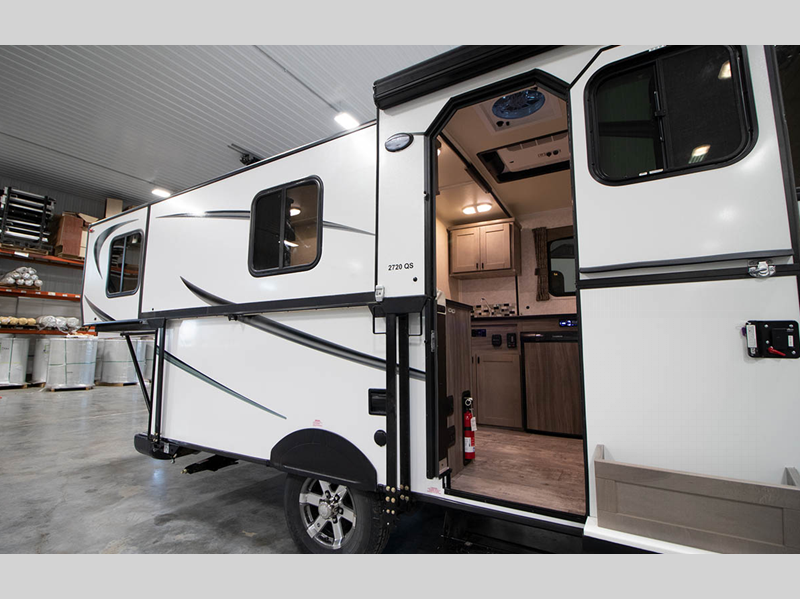

    TrailManor 2720 Series travel trailer 2720QS highlights: Sofa Slide Wardrobe ... more about 2720 Series 2720QS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 20 ft
    Ext Width 7 ft 11 in
    Ext Height 6 ft 8 in
    Int Height 6 ft 4 in
    Hitch Weight 392 lbs
    Dry Weight 2865 lbs
    Cargo Weight 1210 lbs
    Fresh Water Capacity 20 gals
    Grey Water Capacity 30 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Available Beds Queen
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    Cargo Deck Size 0 ft
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

    Similar Floorplans

2720 Series Features:

Standard Features (2019)



Mechanical

  • Rubber torsion axles with independent suspension
  • Bearing lubrication system
  • 2” x 5” steel frame
  • 3” laminated floor
  • Metal underbelly
  • 12-v electrical w/55-amp power converter and battery charger
  • Electric brakes
  • 12-volt demand water system
  • Ground fault interrupter
  • 40 gallon fresh water tank (20 gallon on 2720 and 2922 Slide Out models)
  • City water hookup
  • 30-gallon gray water tank

Exterior

  • Krystal Kote exterior
  • 110 volt outside receptacle

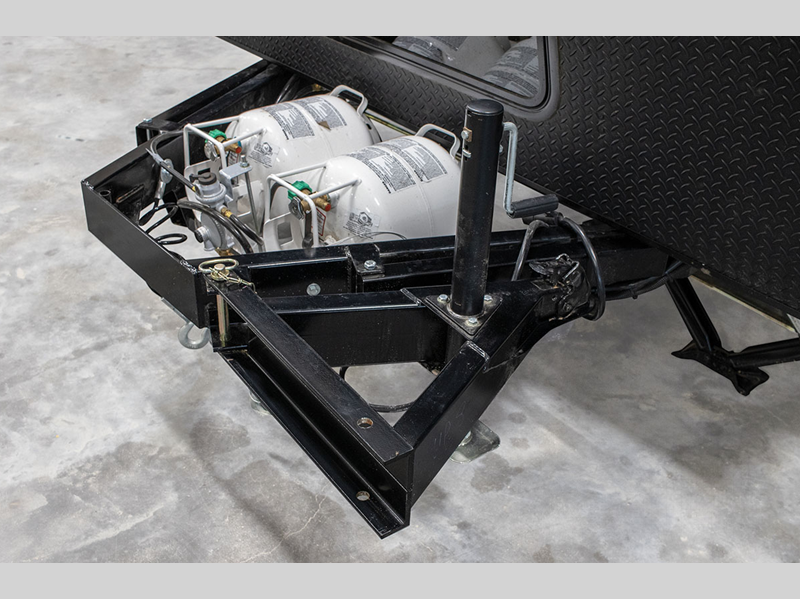

  • Twin 20 lb. gas bottles with automatic changeover
  • LED tail and running lights
  • Outside patio light
  • Stabilizer jacks
  • Radial tires
  • 6-gallon DSI gas/electric water heater
  • Alloy wheels (excludes spare)
  • Spare tire package
  • Outside shower
  • Park cable hookup

Interior

  • Fire extinguisher
  • 12-v power in living area
  • Bath with shower, tub, sink and recirculating toilet
  • 3 burner stove w/oven
  • 3-way 3 cu. ft. refrigerator
  • Roof vents
  • TV/cable outlet
  • LED interior lights
  • Marble look countertops
  • Fantastic Vent ceiling fan
  • Suburban 20,000 BTU furnace
  • Bedroom privacy curtain
  • Monitor panel
  • Smoke detector, CO & LP gas detector
  • Preinstalled wiring for radio/ stereo
  • Power front slide out (Slide out models only)

Optional Equipment

  • Low profile roof air conditioner
  • Awning
  • Electric tongue jack
  • Swing hitch, reducing storage length by 2 feet
  • Hanging kitchen cabinets
  • Microwave in Place of Oven
  • Plumb w/quick connect for outside grill
  • Rear bike receiver
  • AM/FM radio/CD player
  • 95 watt solar panel w/digital control
  • Stove cover
  • Hanging LCD TV mount
  • Front window w/curtains & stone guard
  • Jack HD TV antenna with booster
  • Cassette toilet in place of recirculating toilet



See us for a complete list of features and available options!



All standard features and specifications are subject to change.

Manu-Facts:

TrailManor was founded in 1983, but our story goes back much farther. Before the first TrailManor was shipped to a dealer, the design went through ten years of prototypes and testing. It was only after the innovative TrailManor design was thoroughly proven that it was made available to the public.

Our Founder, William J. Hulsey, has a Ph.D. in Metallurgical Engineering and many years of experience in developing high technology materials and products. He transferred this knowledge into the TrailManor design to produce a trailer that's light in weight, easy to tow, engineered to last, high in resale value, and fun to use from the moment you leave your driveway.

That's what you should expect from a travel trailer, and that's what you get with TrailManor.

In 2011, Bob Eickhoff (TrailManor's Western Sales Manager for many years) and his wife Cleo purchased TrailManor, and have continued the tradition of innovation and quality.
