What's your travel vision? Do you see yourself roaming the countryside, visiting family in neighboring states, or attending festivals and concerts? Whatever your vision is, the Vision XL Class A gas motorhome from Entegra Coach is just waiting to make it happen. Some of the key technological features found on these models are the Firefly Multiplex system and the Winegard 2.0 Wi-Fi/4G antenna, and each model also rides extremely smooth with the E-Z Drive Elite package.



You will be quite impressed when you notice the 190W solar panel with dual controller, and the walk-around king-size bed is another feature that will wow you. These gorgeous coaches are extremely stylish and modern, and they have everything you could possibly need while away from home, like a Girard tankless water heater, an exterior entertainment center with speakers and LED TV, a Sony infotainment center with Apple CarPlay and Android Auto, an LED HD Smart Fire TV in the living area, and a 21-cubic foot residential refrigerator with ice and water in the door.



There is no trip quite like the one taken in the Entegra Coach Vision XL Class A gas motorhome!

  • Vision XL 34B

    Vision XL 34B Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision XL Class A gas motorhome 34B highlights: Fireplace Rear ... more about Vision XL 34B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 36 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse

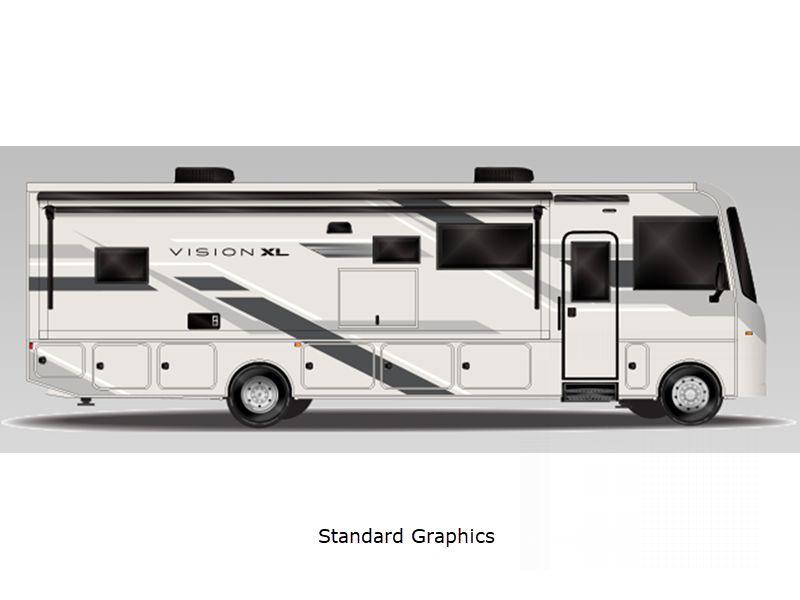

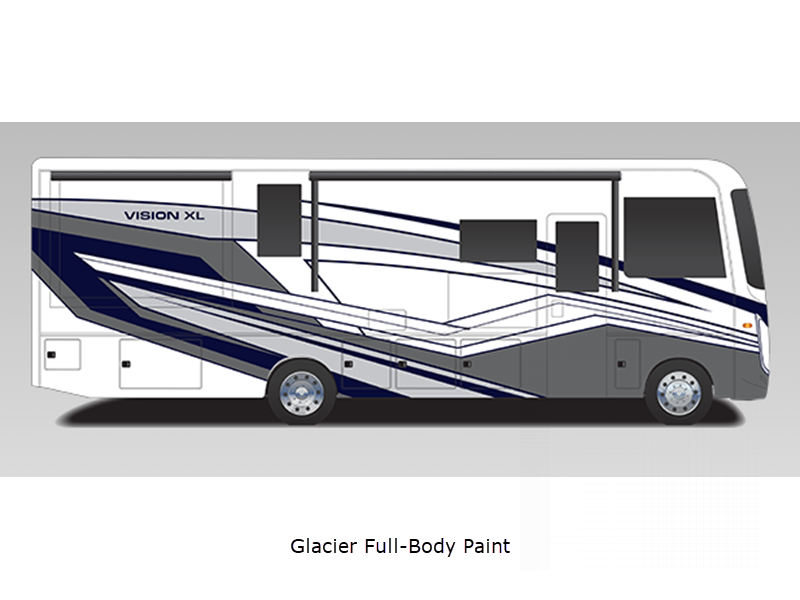

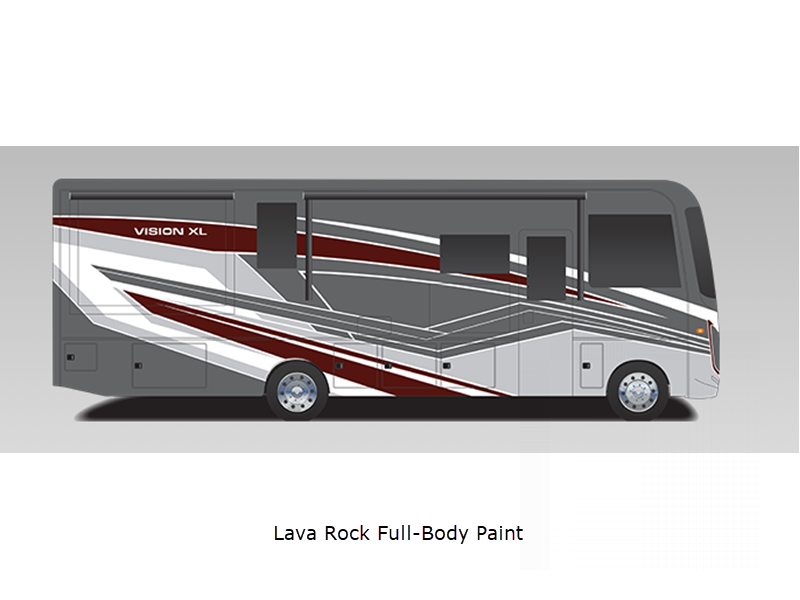

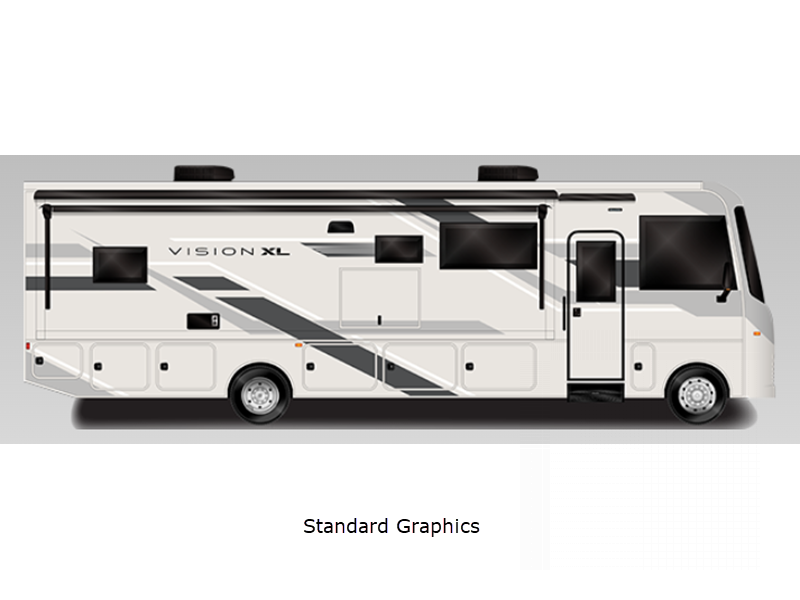

    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 22000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 40 gals
    Tire Size 22.5"
    Furnace BTU 35000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 228 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water in Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Type Girard Tankless
    AC BTU 28500 btu
    TV Info LR 39" LED HD Smart Fire TV, BR LED TV, Ext. LED TV
    Awning Info 18' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Vision XL 34G

    Vision XL 34G Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision XL Class A gas motorhome 34G highlights: Theater Sofa ... more about Vision XL 34G

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 36 ft 6 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 22000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 35000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 238 in
    Available Beds RV King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water In Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Type Girard Tankless
    AC BTU 28500 btu
    TV Info LR 50" LED HD Smart Fire TV on Lift, BR LED TV, Ext. LED TV
    Awning Info 23' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Vision XL 36A

    Vision XL 36A Floorplan Image

    Take a Virtual Tour

    Entegra Coach Vision XL Class A gas motorhome 36A highlights: Two Full Bathrooms ... more about Vision XL 36A

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 38 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 102 gals
    Tire Size 22.5"
    Furnace BTU 60000 btu
    Generator 5,500-watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Number Of Bunks 2
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water In Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Type Girard Tankless
    AC BTU 28500 btu
    TV Info LR 39" LED HD Smart Fire TV, BR LED TV, (2) Bunk TV, Ext. LED TV
    Awning Info 12' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Vision XL 36C

    Vision XL 36C Floorplan Image

    Entegra Coach Vision XL Class A gas motorhome 36C highlights: Master Suite Full ... more about Vision XL 36C

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 38 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Crossville, Modern Farmhouse
    Exterior Color Standard Graphics, Basanite, Marble, Sapphire, Flint
    Hitch Weight 5000 lbs
    Gross Weight 24000 lbs
    Fresh Water Capacity 72 gals
    Grey Water Capacity 72 gals
    Black Water Capacity 72 gals
    Tire Size 22.5"
    Furnace BTU 35000 btu
    Generator 5,500-Watt Onan Marquis Gold Genset
    Fuel Type Gas
    Engine 7.3L V8
    Chassis Ford F53
    Horsepower 350 hp
    Fuel Capacity 80 gals
    Wheelbase 252 in
    Available Beds King
    Torque 468 ft-lb
    Refrigerator Type Residential w/Ice and Water in Door
    Refrigerator Size 21 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Axle Weight Front 9000 lbs
    Axle Weight Rear 15500 lbs
    LP Tank Capacity 16.5 gals
    Water Heater Type Girard Tankless
    AC BTU 28500 btu
    TV Info LR 50" LED HD Smart Fire TV on Lift, BR LED TV, Ext. LED TV
    Awning Info 20' Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 30000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Vision XL Features:

Standard Features (2022)



Chassis

  • EZDRIVE™ ELITE: Computer-balanced driveshaft, variable-rate jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin® tires
  • Automatic hydraulic leveling jacks
  • Ford® F53 chassis
  • 7.3L V-8 350 HP engine with 468 ft.-lb. torque
  • 6-speed automatic TorqShift® transmission with overdrive and tow haul mode
  • 210-amp alternator
  • G-rated highway tires - 235/80R22.5 (34B, 34G), 255/80R22.5 (36A)
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000-lb. rear hitch receiver with dual connector and 7-pin plug
  • 12V chassis battery
  • 80-gal. fuel tank

Construction

  • TuffShell™ vacuum-bond laminated floor
  • TuffShell™ vacuum-bond laminated sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, fiberglass front and rear caps
  • One-piece, seamless, crowned fiberglass roof
  • Fiberglass exterior walls with vinyl graphics

Heat, AC, Water & Power

  • 15,000-BTU A/C unit with heat pump and second 13,500-BTU A/C unit
  • Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start
  • 1,200-watt inverter
  • 50-amp electrical service
  • Girard tankless water heater
  • Transfer switch with reverse polarity protection
  • (2) 6V AGM (220Ah) house batteries on slide out tray
  • Heated holding tanks (12V pads)
  • Auto-ignition ducted furnace-35,000 BTU (34B, 34G),(2) 30,000 BTU (36A)
  • 16.5-gal. propane tank (56-lb.) with LP quick-connect hookup
  • Winterization drain system
  • Black tank flush
  • 12V demand water pump
  • Water filtration system

Exterior

  • Frameless windows
  • Exterior entertainment center with outside speakers, LED TV mounted on swivel bracket and single-disc DVD/FM radio
  • Electric patio awning with LED lights
  • Slide out cover awnings
  • 190W solar panel with dual controller
  • Exterior utility center
  • Outside shower
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step
  • Lockable pass-through storage compartments with slam latches
  • Roof ladder
  • Prep for satellite dish
  • Third brake light

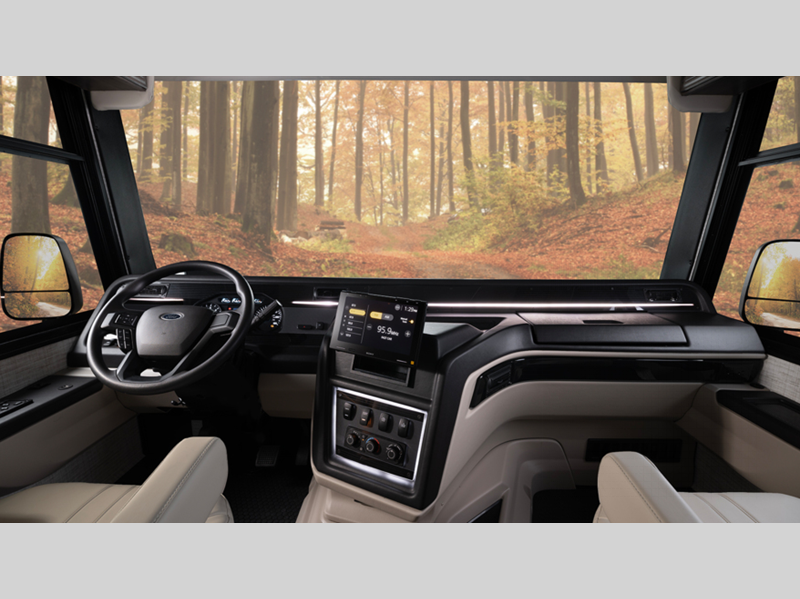

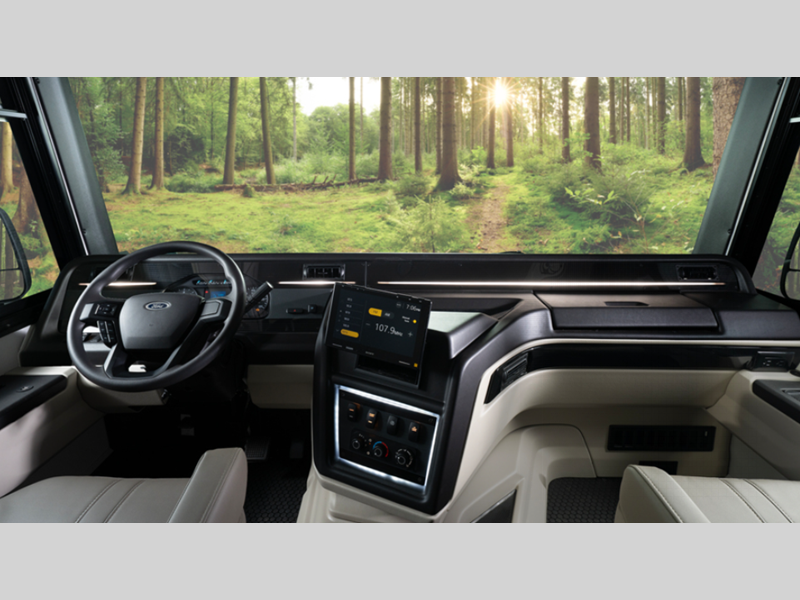

Cockpit

  • Sony® infotainment center with Apple CarPlay® and Android Auto™
  • Backup and side-view cameras
  • Removable driver/passenger cockpit table
  • Power front privacy shade with manual side privacy shades
  • 120-in. panoramic windshield
  • Swivel driver and passenger seats
  • Soft-touch, vinyl-wrapped automotive dash
  • A/C and cruise control
  • Tilt steering wheel
  • Auxiliary start

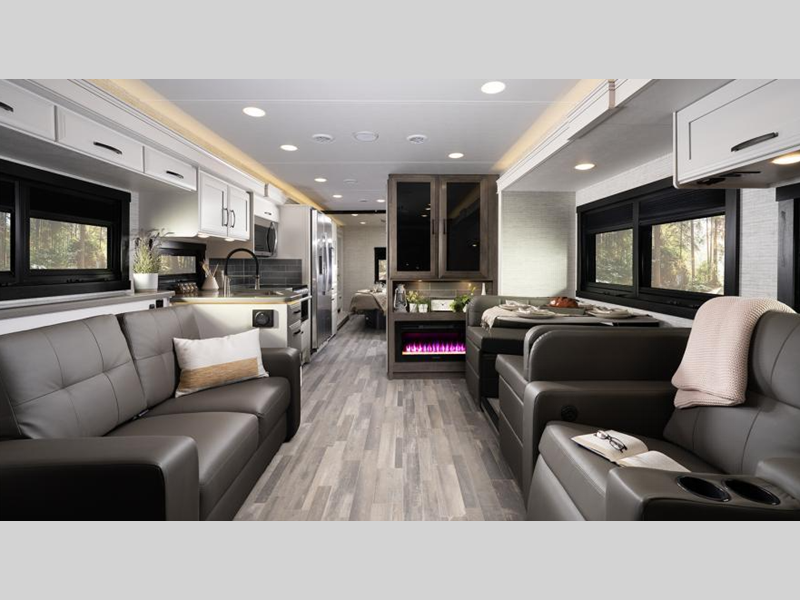

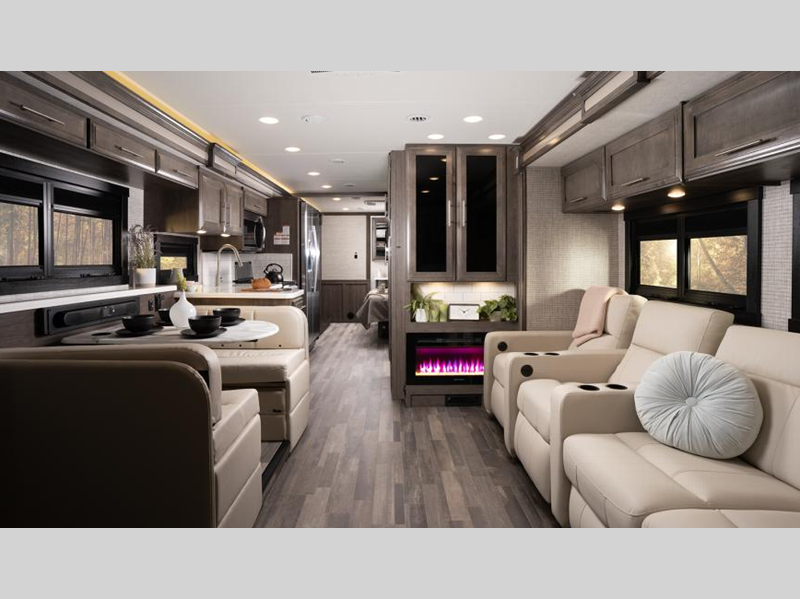

Interior

  • LED HD Smart Fire TV in living area
  • Day/night roller shades in living area
  • Furrion® electric fireplace (34B, 34G only)

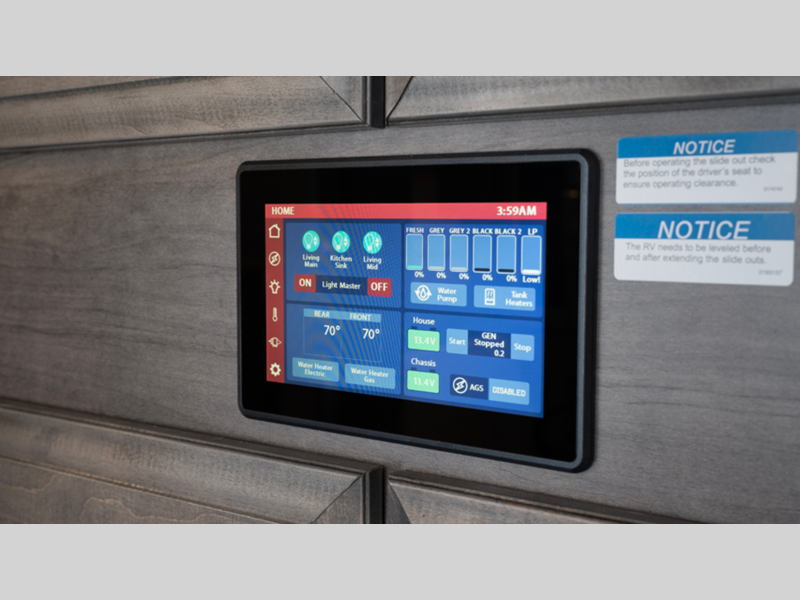

  • Firefly Multiplex system
  • 84-in. interior ceiling height with padded vinyl ceiling
  • High-intensity recessed LED ceiling lights
  • LED-lit hardwood fascia
  • Hardwood cabinet doors and drawers
  • Cable TV hookup with RG-6 coax
  • Winegard 2.0 Wi-Fi/4G antenna
  • Bunks with industry-exclusive, 300-lb. capacity each (36A)

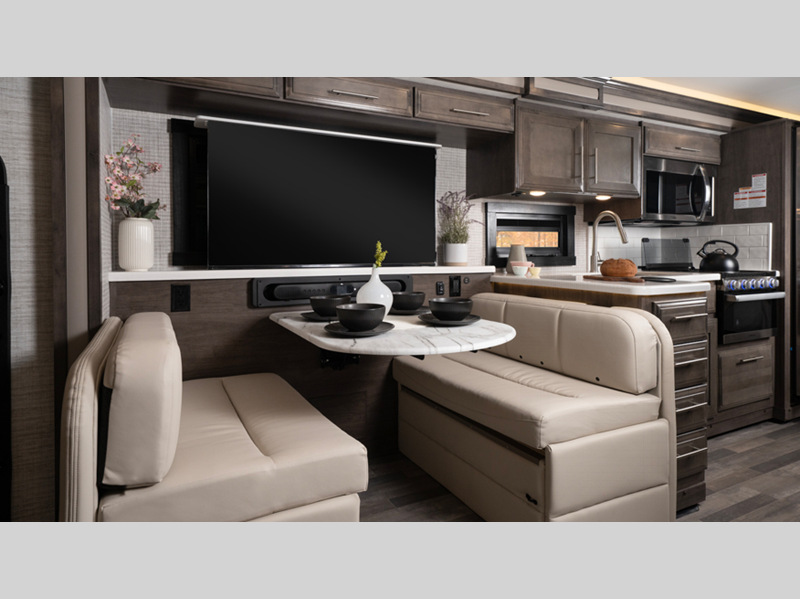

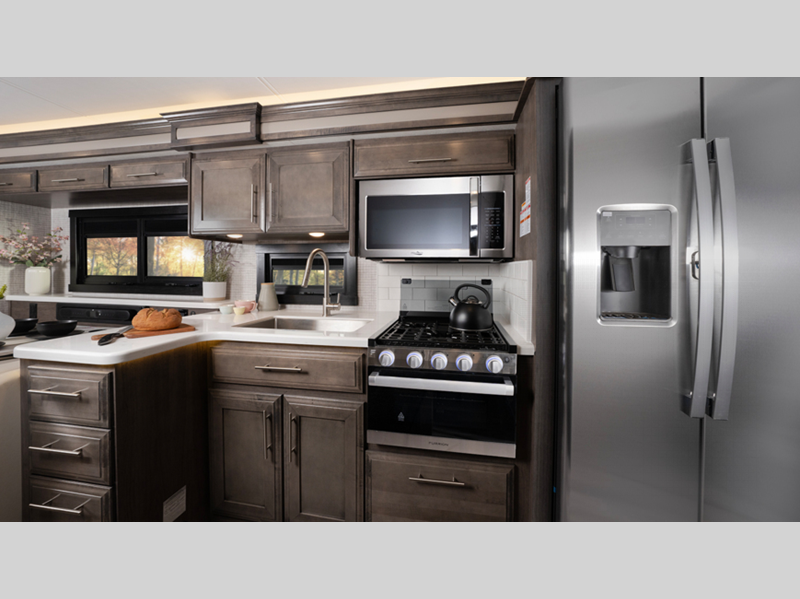

Kitchen

  • LED-lit, solid-surface kitchen countertops
  • Recessed stainless steel sink and sink covers
  • Ball-bearing drawer guides
  • Entegra-exclusive, easy-operation legless dinette table
  • 21-cu.ft. residential refrigerator with ice and water in door
  • Furrion® all-in-one cooktop and oven
  • Residential-size microwave
  • Decorative kitchen backsplash
  • Powered roof vent in kitchen with wall switch

Bedroom

  • Walk-around King-size bed with bedspread and nightstands
  • Under-bed storage (select models)

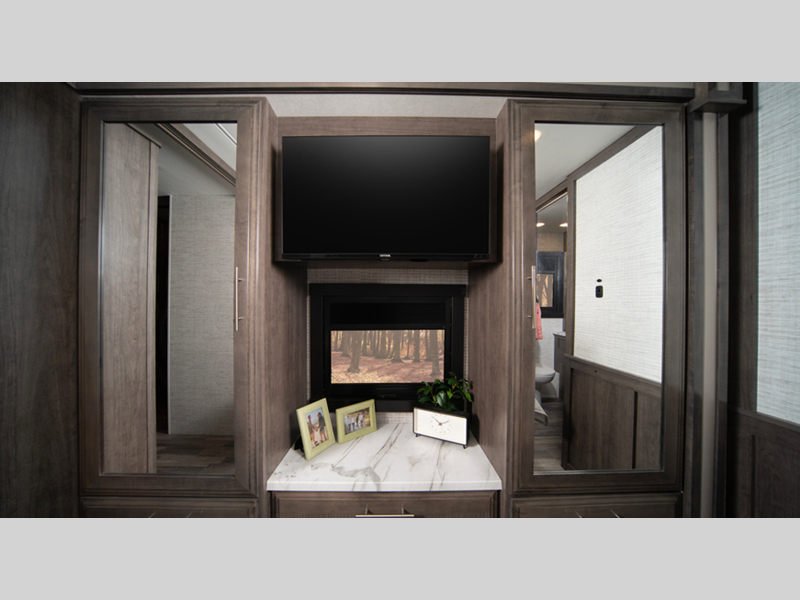

  • LED TV in bedroom
  • Large wardrobes

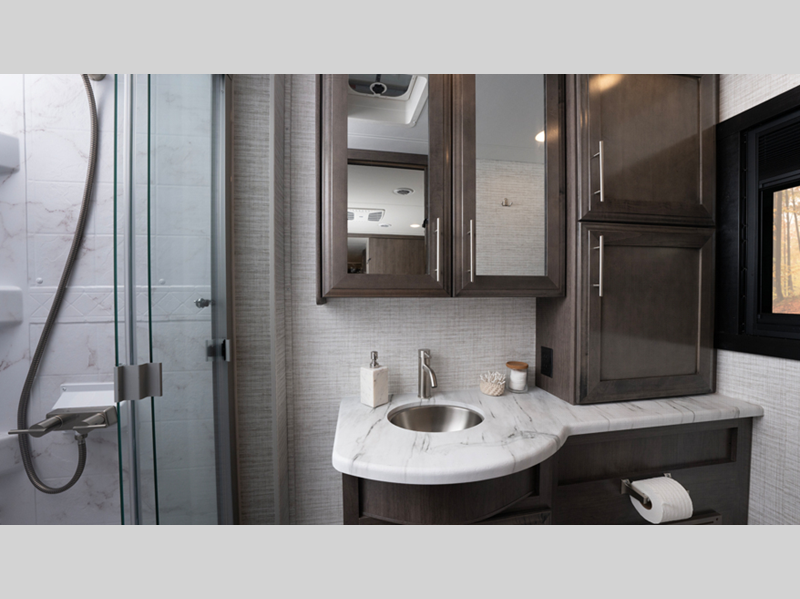

Bathroom

  • Shower with decorative surround, skylight and light
  • Glass shower door
  • Recessed stainless steel bathroom sink
  • Porcelain toilet with foot flush
  • Powered roof vent in bathroom with wall switch

Safety

  • 2-point lap safety belts in all designated seating locations
  • Smoke alarm
  • Carbon monoxide detector
  • Porch light

Options

  • Canadian standards
  • Customer Value Package (Mandatory)
    • E-Z Drive Elite, 5.5 KW generator, 50 amp electrical service, 1,200 watt inverter, automatic hydraulic leveling jacks, backup and side-view camera, driver/passenger cockpit table, electric awning with LED lights, exterior entertainment center, frameless windows, infotainment center, LED TV in living room, roller shades, slide out awnings, solid-surface kitchen countertops

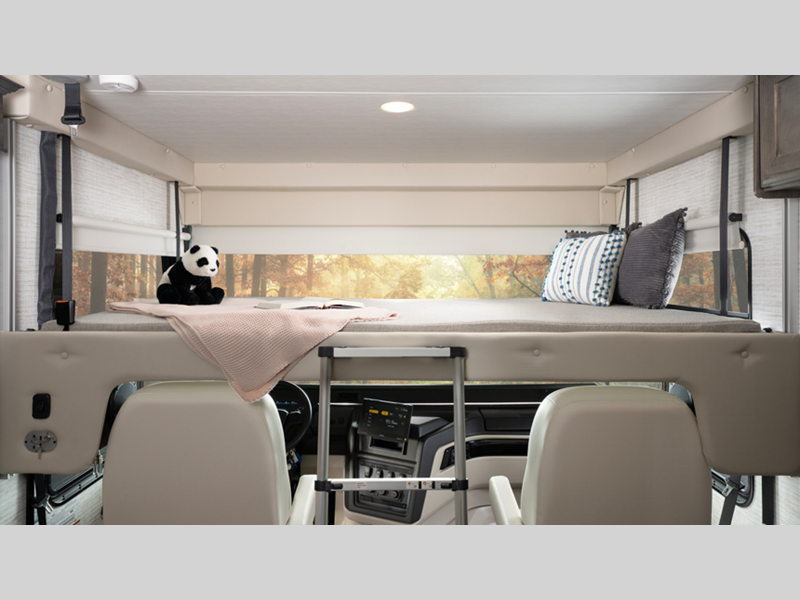

  • Overhead bunk with 750-lb. capacity

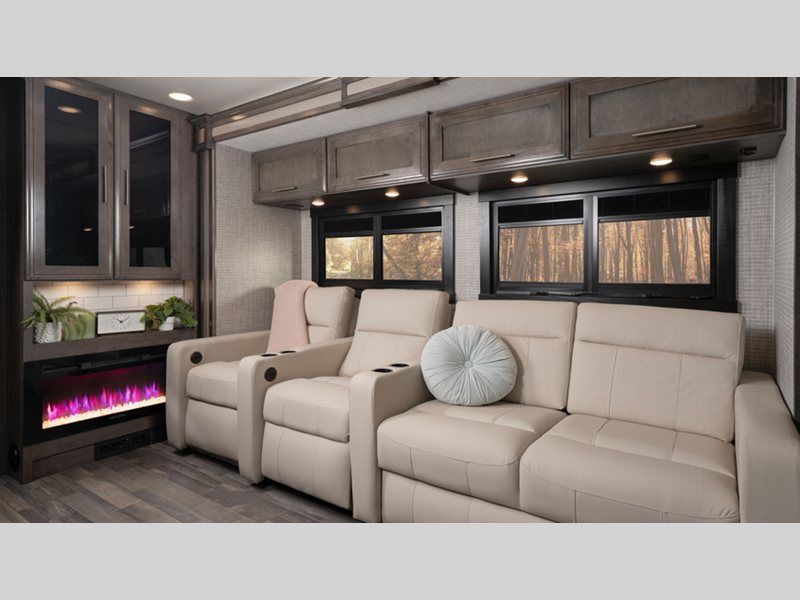

  • Theater Seating

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
