Tiffin Motorhomes Wayfarer Motor Home Class C - Diesel

Previous
Next
1 of 26

You are going to love this compact, fun-to-drive, Wayfarer class C diesel by Tiffin Motorhomes!  These units are loaded with Tiffin's legendary luxury and comfort throughout, and feature the sophisticated Mercedes-Benz chassis for power and durability which is all rolled into one complete compact package.



You will love the Wayfarer with its full bath and kitchen amenities and plenty of storage for all your items. Each model includes a TV in the living room, USB ports in the bedroom, and a single bowl sink in the kitchen for easy clean-up, plus much more.



For a class C diesel that brings luxury to your ride and your time while stopped, choose a new Tiffin Motorhome Wayfarer class C diesel and enjoy!

  • Wayfarer 24 BW

    Wayfarer 24 BW Floorplan Image

    Take a Virtual Tour

    Tiffin Wayfarer class C diesel motorhome 24 BW highlights: Split Bath Tri-Fold ... more about Wayfarer 24 BW

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sandstone, Truffle, Tectona
    Exterior Color Cordova, Frontier, Mountain Peak, Gulfside, Omni, Imperial
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 27 gals
    Furnace BTU 30000 btu
    Generator 3.2 kw Onan Diesel
    Fuel Type Diesel
    Engine 3.0L 6 Cylinder Turbo Diesel
    Chassis Mercedes-Benz
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 32" x 24"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20 gals
    Water Heater Type Girard Instant
    AC BTU 13500 btu
    Basement Storage 54 cu. ft.
    TV Info LR TV
    Awning Info 14' Carefree Power
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Wayfarer 24 FW

    Wayfarer 24 FW Floorplan Image

    Take a Virtual Tour

    Tiffin Wayfarer class C diesel motorhome 24 FW highlights: Queen Murphy Bed Rear ... more about Wayfarer 24 FW

    Specifications

    Sleeps 6
    Slides 1
    Length 25 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sandstone, Truffle, Tectona
    Exterior Color Cordova, Frontier, Mountain Peak, Gulfside, Omni, Imperial
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 37 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 29 gals
    Furnace BTU 30000 btu
    Generator 3.2 kw Onan Diesel
    Fuel Type Diesel
    Engine 3.0L 6 Cylinder Turbo Diesel
    Chassis Mercedes-Benz
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen Murphy Bed
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 6.5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 32" x 24"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20 gals
    Water Heater Type Instant
    AC BTU 13500 btu
    Basement Storage 32 cu. ft.
    TV Info LR TV
    Awning Info 14' Carefree Power
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 6
    Slides 1
    Length 25 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sandstone, Truffle, Tectona
    Exterior Color Cordova, Frontier, Mountain Peak, Gulfside, Omni, Imperial
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 27 gals
    Furnace BTU 30000 btu
    Generator 3.2 kw Onan Diesel
    Fuel Type Diesel
    Engine 3.0L 6 Cylinder Turbo Diesel
    Chassis Mercedes-Benz
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Twins Convert to King
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 32" x 24"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20 gals
    Water Heater Type Girard Instant
    AC BTU 13500 btu
    Basement Storage 68 cu. ft.
    TV Info LR TV
    Awning Info 14' Carefree Power
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Wayfarer 25 QW

    Wayfarer 25 QW Floorplan Image

    Tiffin Wayfarer class C diesel motorhome 25 QW highlights: Booth Dinette Full ... more about Wayfarer 25 QW

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Sandstone, Truffle, Tectona
    Exterior Color Cordova, Frontier, Mountain Peak, Gulfside, Omni, Imperial
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 27 gals
    Furnace BTU 30000 btu
    Generator 3.2 kw Onan Diesel
    Fuel Type Diesel
    Engine 3.0L 6 Cylinder Turbo Diesel
    Chassis Mercedes-Benz
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 6.5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 32"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20 gals
    Water Heater Type Girard Instant
    AC BTU 13500 btu
    Basement Storage 54 cu. ft.
    TV Info LR TV
    Awning Info 14' Carefree Power
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 7 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Truffle, Tectona, Sandstone, Leather
    Exterior Color Cordova, Frontier, Mountain Peak, Gulfside, Omni, Imperial
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 38 gals
    Grey Water Capacity 36 gals
    Black Water Capacity 28 gals
    Furnace BTU 30000 btu
    Generator 3.2kw Diesel
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Mercedes-Benz
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170.3 in
    Available Beds Queen Size Murphy
    Torque 325 ft-lb
    Refrigerator Type Gas/Electric
    Refrigerator Size 6.5 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 24" x 36"
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20 gals
    Water Heater Type Girard Instant
    AC BTU 13500 btu
    Basement Storage 32 cu. ft.
    TV Info LR Swivel Arm TV
    Awning Info Carefree 14'
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Wayfarer Features:

Standard Features



General Mechanical

  • Mercedes® Chassis
  • 3.0 6-Cylinder Turbo Diesel Engine with 5-speed Automatic Tip Shift Transmission 188 HP/325 lb Torque
  • GVWR: 11,030 lb (24 BW)
  • GCWR: 15,250 lb(24 BW)
  • GAWR - Front: 4,410 lb (24 BW)
  • GAWR - Rear: 7,720 lb (24 BW)
  • Lighting Package with Bi-xenon Headlamps
  • Headlamp Washing System
  • Multi-function Steering with Trip Computer
  • Light and Rain Sensor
  • Heated/Electric Adjustable Mirrors
  • Windshield with Filter Brand
  • Overhead Control Panel with Reading Lamps
  • Lane Keeping Assist
  • Collision Prevention Assist
  • High Beam Assist
  • Stainless Steel Wheel Liners
  • 5,000 lb Rated Hitch with 500 lb Vertical Tongue Weight and 7-pin Connector
  • SumoSprings Ride Assist System
  • Overall Length (Approximate*): 25' 7'' (24 BW)
  • Overall Height with Roof Air (Maximum): 11' 4" (24 BW)
  • Interior Height: 6’ 8' (24 BW)
  • Overall Width*: 7’ 6” (24 BW)
  • Interior Width: 7’ 3” (24 BW)
  • Fresh Water (Gallons): 32 (24 BW, 25 QW)
  • Fresh Water (Gallons) : 38 (25 RW)
  • Fresh Water (Gallons) : 37 (24 FW)
  • Fresh Water (Gallons) :40 (24 TW)
  • Black Water (Gallons): 27 (24 BW, 24 TW, 25QW)
  • Black Water (Gallons) : 28 (25RW)
  • Black Water (Gallons) : 29 (24 FW)
  • Grey Water (Gallons): 33 (24 BW, 24 TW, 25QW)
  • Grey Water (Gallons) : 36 (25 RW)
  • Grey Water (Gallons) : 30 (24 FW)
  • LPG Tank (Gallons; can only be filled to 80% capacity): 20 gallons (16 usable)
  • Basement Storage (Cubic Feet - Approximate): 54 (24 BW, 25QW)
  • Basement Storage (Cubic Feel - Approximate) : 32 (25 RW, 24 FW)
  • Basement Storage (Cubic Feet -Approximate) : 68 (24 TW)
  • Wheel Base: 170.3" (24 BW)
  • Trailer Hitch Capacity**: 5,000 lb
  • Fuel Tank: 26.4 Gallons (24 BW)
  • DEF Tank (Gallons): 4.8 (24 BW)
  • Load Adaptive Electronic Stability (ESP

General Exterior

  • Two Seamless Slide-outs
  • HD TV Antenna with Amplifier
  • Two 12 V House Batteries (Group 27/180 Amp Hours)
  • 30 Amp 110 V House Service
  • Power Cord - 30' Permanently Attached
  • 3.2 kw Diesel Generator
  • 1000 Watt Inverter Pure Sine
  • 110 V and 12 V House Load Center with Power Converter
  • HD Over-the-Air TV Antenna
  • Prep for Satellite
  • Prep for Winegard® Dome System
  • Pre-wired for Solar Panels
  • Park Cable and Ground
  • Satellite Hook-up
  • Carefree 14' Awning
  • Automatic Lights in Exterior Compartment Doors
  • 13.5 k Coleman Roof Mounted AC
  • Wall-mount Thermostat with Built-in Temperature Sensor
  • 30K BTU Propane Ducted Furnace
  • 12 V Engineered Wiring Harnesses
  • Girard Instant Hot Water Heater
  • Entrance Door Assist Handle

General Exterior Options

  • Exterior TV
  • 15 k Roof Mounted AC with Heat Pump
  • Solar Panels
  • Equalizer 4-point Leveling Jacks
  • Electric Stabilizers
  • Truma® Comfort Plus Instant Hot Water Heater
  • 2000 Watt Inverter Pure Sine (24 BW, 24 TW, 25QW, 24 FW))

General Interior

  • Separate Speaker Zones
  • Stereo System
  • LED Lights
  • Spyder® Multiplex Coach Control System
  • Satellite System Compatible
  • Privacy Shades
  • 2 Captain’s Chair Lounge Cushions
  • Soft Vinyl Ceiling
  • Professionally Designed Interior Decor Packages
  • Premium Fabric Suites
  • Combination Carbon Monoxide and Propane Detector

General Interior Options

  • Chestnut, Honeycomb, or Russet Cabinets
  • Central Vacuum System

Cockpit

  • USB Port
  • Radio
  • Back-up Camera
  • Power Cab Door Locks
  • Power Cab Door Windows
  • Power Mirrors with Defrost
  • Cruise Control
  • Tilt Telescoping Steering Wheel
  • Chassis/House Battery Radio Power Switch
  • Sun Visors
  • 12 V Power Outlet
  • Central Cab Locking with 2 Remotes
  • Windshield Shades
  • Swivel Seat Base for Both Driver and Passenger Seat
  • Driver and Passenger Door Courtesy Lights

Cockpit Options

  • In-dash Navigation System
  • Premium Sliding Window and Windshield Shade
  • Side Cameras (Must have In-dash Nav)

Living Area

  • Living Area TV
  • Tinted Living Area Windows
  • Overhead Bunk
  • Leatherette Sofa w/Trifold Hide-A-Bed (24 BW 24 TW)
  • Face-to-face Dinette On Driver Side (25 RW, 24 FW)
  • House Radio/DVD/Bluetooth

Living Area Options

  • Overhead Entertainment Center
  • 70" Sofa with Hide-a-bed (54" x 74") (25 RW)
  • Theater Seats on Driver Side (25 RW, 24 FW)
  • Leatherette Sofa w/trifold Hide-a-bed on Driver Side ( 25 QW, 24 FW)

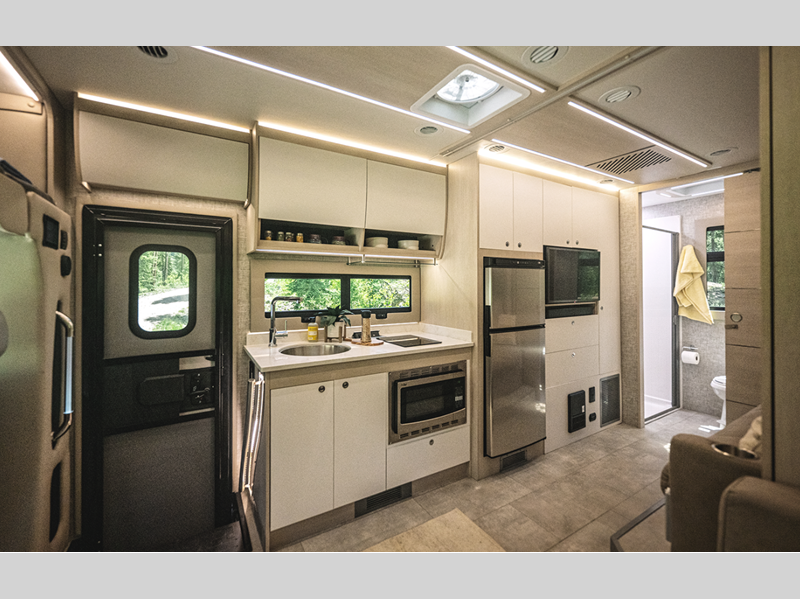

Kitchen

  • Cooktop with Built-in Cover
  • Convection Microwave
  • 5 Cubic Foot Refrigerator w/2 Batteries (24 BW, 24 TW)
  • 6.5 Cubic Foot Gas/Electric Refrigerator (25 RW, 25 QW, 24 FW)
  • Single Bowl Sink
  • Designer Faucet
  • Spice Rack
  • Over-the-Counter Lighting
  • Under-the-Counter Lighting
  • Fire Extinguisher
  • 110 V Outlet

Bedroom

  • Night Stands
  • LED Reading Lights
  • Queen Mattress (60" x 74") (24 BW, 25QW)
  • Queen Sofa Murphy Bed (60" x 74") (24FW, 25RW)
  • Queen Murphy Bed (60" x 74") (24 FW)
  • Twin Mattress (32" x 76") (24 TW)
  • Two Wardrobes
  • Inverted Outlets in Bedroom for CPAP Machine
  • USB Port

Bedroom Options

  • Bedroom TV (24 BW, 24 TW, 25QW)
  • Twin beds convert to King Mattress (86" x 76") (24 TW)
  • Bedroom Lift-up TV ( 24 FW)

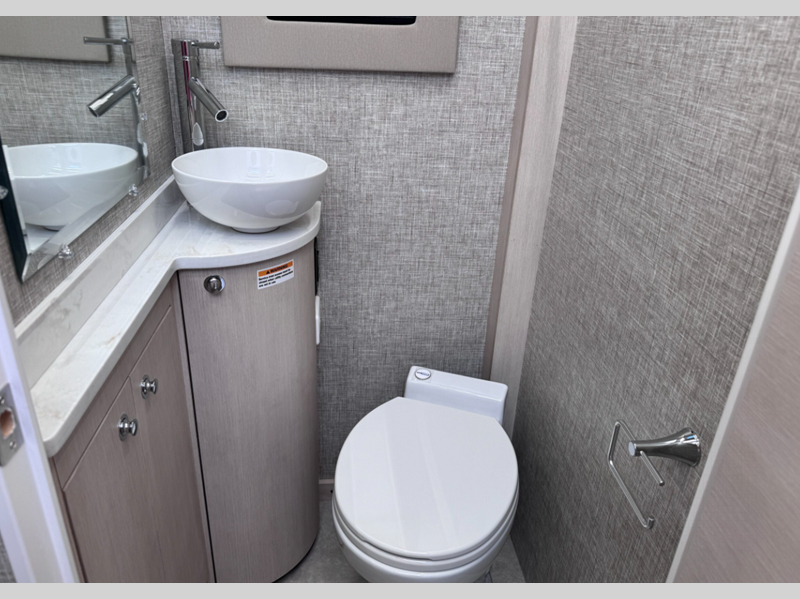

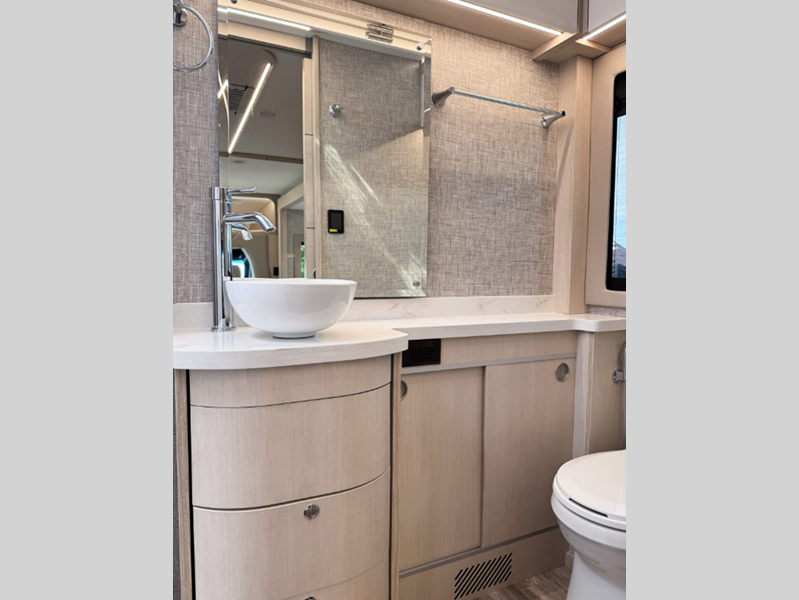

Bathroom (25 RW ONLY)

  • Shower (24" x 36")
  • Porcelain Vessel Sink with Chrome Faucet
  • Vanity Storage

See us for a complete list of features and available options.

All standard features and specifications are subject to change.



Manu-Facts:

Tiffin Motorhomes is proud to be one of the few family-owned manufacturers in the industry, and it makes a significant difference in how our company operates versus our competitors. For starters, with the Tiffin name on every coach, building a superior motorhome isn’t just our occupation. It’s a matter of personal pride, a pursuit we have committed our lives to perfecting.

Bankston Motor Homes 2191 Jordan Lane N.W. Huntsville, AL 35816 800-624-2899
Copyright © 2019 Bankston Motor Homes • RV Dealer Website DesignPrivacy PolicySold RVs
