+6-
Sleeps 5
-
4 Slides
-
Rear Bedroom
-
37ft Long
-
22,600 lbs
-
VISTA

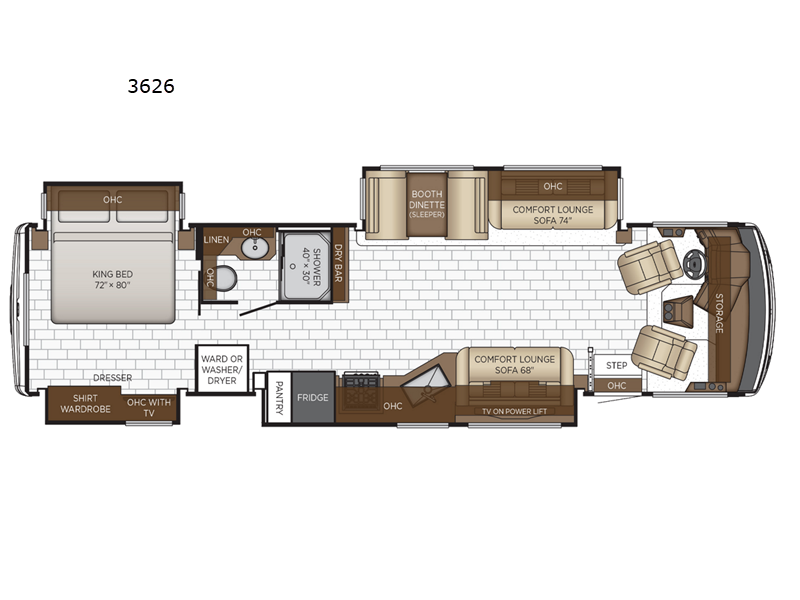

3626 Floorplan
Specifications
| Sleeps | 5 | Slides | 4 |
| Length | 36 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 7 ft |
| Interior Color | VISTA | Exterior Color | WILLIAMSBURG |
| Hitch Weight | 5000 lbs | GVWR | 26000 lbs |
| Dry Weight | 22600 lbs | Cargo Capacity | 3400 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 60 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 35000 btu |
| Fuel Type | Gas | Engine | 7.3L V8 |
| Chassis | Ford F-53 | Horsepower | 335 hp |
| Fuel Capacity | 80 gals | Wheelbase | 242 in |
| Available Beds | King | Torque | 468 ft-lb |
| Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 40" x 30" | Number of Awnings | 1 |
| Axle Weight Front | 9000 lbs | Axle Weight Rear | 17500 lbs |
| LP Tank Capacity | 25 gals | Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric | AC BTU | 27000 btu |
| TV Info | LR Samsung LED, BR Samsung LED | Awning Info | Carefree Travel'r Power Side Awning w/Strip Lighting |
| Washer/Dryer Available | Yes | Gross Combined Weight | 30000 lbs |
| Shower Type | Standard | Electrical Service | 50 amp |
| VIN | 1F66F5DN9S0A01617 |
Description
Newmar Bay Star Class A gas motorhome 3626 highlights:
- Comfort Lounge Sofa
- Pantry
- King Bed Slide Out
- Front Overhead Storage
- 10 Cu. Ft. Norcold Refrigerator
- 6-Way Power Driver's Seat
Four slide outs make this motorhome both spacious and comfortable for all your excursions! The USB charger at the passenger area will be a big plus if you need to telecommute on the way to the campground, and your guests can stay comfortable on the two comfort lounge sofas or the booth dinette. This model includes a wardrobe right across from the full bath that can be optioned out for an optional Splendide stacked washer and dryer, and the rear private bedroom will feel just like home with its king bed and shirt wardrobe. There is even a bedroom LED TV, along with the living room LED TV on power lift!
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 335 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its full-paint Masterpiece Finish and new graphics packages, plus you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes Williamsburg furniture, woven material in the slide outs, luxurious vinyl plank flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lights in the storage compartments, a 5.5kW Cummins Onan generator with remote switch, and hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered!
- BUNK BED DROP DOWN OVER DRVR/PASS SEATS EXTENDS TO WINDSHIELD W/BUNK LADDER & OVERHEAD CABINET
- EXTERIOR ENTERTAINMENT CENTER IN SIDEWALL W/SAMSUNG 32" LED TV
- AM/FM RADIO
- & SPEAKERS
- FOLDING COCKPIT TABLE
- FORD F53 CHASSIS WITH 7.3LTR V-8 ENGINE - 26,000#
- BAY STAR
- HEAT PADS 110 VOLT FOR HOLDING TANKS
- MESA GLAZED MAPLE - VW - SUEDE
- PREP FOR STARLINK W/ 110V OUTLET
- REFRIGERATOR NORCOLD 15 CF 3-DOOR WITH ICEMAKER
- SOLAR PREP WITH 6 GAUGE WIRE RAN FROM ROOF TO 1ST STORAGE COMPARTMENT
- SOUNDBAR BOSE SOUND SYSTEM
- THEATER SEATING 74"
- 68" TRIFOLD
- VISTA DECOR BS25-463
- WASHER/DRYER PREP
- WATER HEATER TRUMA COMFORT PLUS CONTINUOUS FLOW
- WIFI RANGER DENALI/SPRUCE LTE
- WINEGARD RAYZAR AUTOMATIC DIGITAL TV ANTENNA
Features
Standard Features (2026)
Exterior
- Exterior Full-Paint Masterpiece Finish™ with Clearcoat
- Entrance Door Assist Handle
- Entrance Door Automatic Step
- Exterior Mirrors Convex with Defrost & Remote Control
- Front Cap Diamond Shield Protection
- Hydraulic Leveling Jacks Smart Level with Bluetooth Compatible TouchPad
- Mud Flaps
- Rear Hitch for Towing Car
- Undercoating
Optional
- Annapolis Full Painted Exterior Graphics
- Calvert Full Painted Exterior Graphics
- Williamsburg Full Painted Exterior Graphics
- Special Order Exterior Colors (Must Also Order Awning Color Option)
- Flag Pole Bracket
- Rear Ladder
- Windshield Temporary Protection (For Transport Only)
Construction
- 16" On-Center Aluminum Frame Sidewalls & Roof Construction
- Entrance Door Power Opening for Wheelchair Lift (Floor Plan 3811)
- Foam Insulation 5/8" Laminated in Sidewalls & Ceiling
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- One-Piece Molded Fiberglass Roof
- Polar Pak R19 Batten Insulation in Roof
- Slideout Automatic Mechanical Lock Arms - Scissor Style
Optional
- Egress Door with Ladder System* (See Floor Plans for Availability)
- Entrance Step Well Power Cover (Floor Plan 3811)
Chassis
- Anti-Lock Braking System
- Auto Emergency Brake, Distance Alert, Post Impact Braking, Lane Departure Warning
- Cruise Control
- Driver Alert System and Message Center
- Electronic Stability Control
- Ford Forward Collision Mitigation System, Adaptive Cruise Control, Auto High Beams, Passive Entry
- Ford F53 Chassis with 7.3L V-8 Engine - 26,000#, Bay Star
- Tilt Steering Wheel
- Aluminum Wheels
Optional
- Ford F53 Chassis with 7.3L V-8 Engine - 26,000#, Bay Star, Canada
Windows, Awnings & Vents
- Carefree Travel'R Power Side Awning with Alumaguard and Strip Lighting
- Fan-Tastic® Vent with Rain Sensor in Kitchen & Bathroom
- Rear Window in Bedroom* (See Floor Plans for Availability)
- Skylight Above Shower
- Slideout Covers
- Windows Frameless Double-Pane Tinted Safety Glass
- Windshield One-Piece Tinted
Optional
- Charcoal Tweed Awning (Must Be Ordered with Option B005 Special Order Exterior Graphics)
- Hogan Sparrow Awning (Must Be Ordered with Option B005 Special Order Exterior Graphics)
- Screen Door Over Wheelchair Lift Area (Floor Plan 3811)
Air Conditioning & Heating
- Two 13.5K BTU Heat Pump Air Conditioners
- Dash Heater & Air Conditioner
- Defrost Fans Built into Front Overhead
- Furnace Propane Gas with Ducted Heat
Optional
- Auxiliary Heater in Rear of Coach
Electrical
- Automatic Generator Start on Low Battery or Temperature Setting
- Battery Disconnect Switch for House Battery
- Cable TV Connection
- Dash Radio, Cameras and Monitors to Power Up from Both House Batteries & Ignition
- Daytime Running Lights
- Drain Lift Pump (Floor Plan Specific)
- 50 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
- Emergency Engine Start Switch
- Energy Management System
- Six 6V House Batteries
- 2000W Tru Sine Inverter with CPAP Prep
- LED Light on Awning
- LED Lights in Ceiling
- Lights in Exterior Storage Compartments
- Lights in Wardrobes
- Multiplex Lighting Control System
- 10.1" Multiplex Monitor System in Center of Coach with Interior Lighting & HVAC Controls
- Newmar App
- 5.5 kW Cummins Onan® Generator with One Remote Switch & Automatic Changeover
- Power Rewind Reel with 33' Cord (Floor Plan Specific)
- 12V Recept Auxiliary on Dashboard
- Slideout Switch Manually Operated Hold to Run
- 10W Solar Panel to Charge Chassis Battery
- USB Outlet at Dash for Driver Use
- USB Outlet at Passenger Seat Area
- Wireless Phone Charger (2) in Cockpit
Optional
- Solar Prep with 6 Gauge Wire Ran from Roof to 1st Storage Compartment
Plumbing & Bath
- Demand Water System
- Exterior Shower Located on Off-Door Side
- Sewage Holding Tank Rinse
- Fiberglass Shower Surround with Shower Door
- Dometic® 310 China Bowl Stool
- Systems Monitor Panel
- Water Filter, for Entire Unit
- Water Heater Bypass System
Optional
- 110V Heat Pads for Holding Tanks
- Truma AquaGo Continuous Flow Water Heater
Cabinets & Furniture
- Dusk Maple Cabinets - Suede Finish
- Bed Base Lowered with Power Incline Head of Bed & Deluxe Air Mattress (Floor Plan 3811)
- Concealed Cabinet Door Hinges
- Soft-Close Cabinet Drawers
- Cabinet Drawers with Full Extension Ball Bearing Guides
- Polished Solid-Surface Countertop in Kitchen, Undermount Sink & Sink Covers
- Solid-Surface Countertop in Bathroom and Bedroom
- Williamsburg Sleeper Dinette Booth
- Dinette with Power Adjustable Table, Bench Seat & Folding Chair (Floor Plan 3811)
- Drawers Underneath Dinette Booth Seats
- Driver Seat with Six-Way Power
- Lifts on Bed Top
- Plush Pillow Top Mattress
- Molded Silverware Divider Tray
- Pullout Pantry Shelves* (See Floor Plans for Availability)
- Passenger Seat Tablet Holder
- Passenger Seat with Manual Foot Rest
- Williamsburg Sofa and Front Seats
Optional
- Chiffon Maple Cabinets - Suede Finish
- Cove Glazed Maple Cabinets - Suede Finish
- Mesa Glazed Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Cove Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Dusk Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Mesa Glazed Maple Cabinets - Suede Finish
- Full-Height Bed Base (Floor Plan 3811)
- Lowered Bed Base (Fixed) with Freestyle Glideaway Adjustable Bed Mechanism, Air Mattress & Window (Floor Plan 3811)
- Power Adjustable-Height Bed Base with Freestyle Glideaway Bed Mech, Air Mattress & Window (Floor Plan 3811)
- Drop Down Bunk Bed Over Drvr/Pass Seats Extends to Windshield with Bunk Ladder & Overhead Cabinet
- Drop Down Bunk Bed Over Drvr/Pass Seats Extends to Windshield with Bunk Ladder, Fireplace with TV & Soundbar (Floor Plan 3811 Only)
- Combo Desk Dinette with Buffet Table, Two Fixed & Two Folding Chairs
- Combo Desk Dinette with Free Standing Hidden Leaf Table, Two Fixed & Two Folding Chairs
- Euro Booth Dinette with One Table Leaf
- Folding Cockpit Table
- 74" Incliner Non-Sleeper Sofa ILO Comfort Lounge
- 68" Visionary V2 Trifold Sofa with Memory Foam Mattress (N/A with K936)
- 74" Visionary V2 Trifold Sofa with Memory Foam Mattress
- 84" Visionary V2 Trifold Sofa with Memory Foam Mattress
- 68" Theater Seating (Manual) with Reading Lights
- 74" Theater Seating (Manual) with Reading Lights 68" Trifold Sofa
- 68" Trifold Sofa ILO Comfort Lounge
- 74" Theater Seating (Manual) with Reading Lights
- 84" Theater Seating (Manual) with Reading Lights
Appliances
- 30" Convection Stainless Steel Microwave with Air Fryer Feature with Three-Burner Recessed Cooktop
- Convection Microwave Below Cooktop on Floor Plan 3811
- 10 Cu. Ft. Norcold® Refrigerator
- Six-Gallon Gas/Electric Water Heater with Electronic Ignition
Optional
- 30" Stainless Steel Microwave Convection with Air Fryer Feature in Kitchen OH with Drawer Below Cooktop (Floor Plan 3811)
- 15 Cu. Ft. Norcold® Three-Door Refrigerator with Icemaker
- 11 Cu. Ft. Whirlpool® Refrigerator
- 11 Cu. Ft. Whirlpool® Refrigerator with Ice Maker
- Washer and Dryer Prep* (See Floor Plans for Availability)
- Stacked Two-Piece Splendide® Washer and Dryer* (See Floor Plans for Availability)
Interior
- Auto Motion Manual Double Roller Shades on Windows Behind Driver & Passenger Area
- Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
- Fitted Non-Quilted Bedspread & Accent Pillow
- ABS Color-Coordinated Dash Panel
- Decorative Wall Art
- Interior Passage Inlayed Six Panel Design Doors
- Interior Assist Handle at Main Entry Door
- Padded Vinyl Ceiling Panels
- Shoe Storage Located in Entrance Door Step Compartment
- Vinyl Plank Floor in Kitchen, Bathroom, Bedroom & Living Areas
- Waste Basket in Kitchen Base Under Sink
- Window Blind Integrated System on Entry Door
- Woven Material on Slideout Floors
Optional
- Stowe Interior Decor
- Arlo Interior Decor
- Vista Interior Decor
Audio, Video & Accessories
- 10" Single Monitor Axxera Dash Radio with Android Auto™ and Apple CarPlay® & SiriusXM® Ready
- Side View Cameras Displayed onto Rear View Monitor Screen
- 180W Dash Radio with Harman/JBL Sound System
- 10 BC Fire Extinguisher, Carbon Monoxide, Propane & Smoke Detectors
- High Definition Component Wiring
- Rear View Color Monitor System with Audio
- Satellite Dish Prep on Roof
- TV Jack and 110V Recept in Door Side Exterior Storage Compartment
- Samsung® LED TV in Living & Bedroom Areas (TV Sizes Vary Per Floor Plan)
- Winegard® Digital Crank-Up TV Antenna
Optional
- Exterior Entertainment Center in Sidewall with 32" Samsung® LED TV, AM/FM Radio, & Speakers
- Bose® Soundbar Sound System (Not Available with K936, Bunk Option on 3811)
- Starlink Internet System
- 32" Samsung® LED TV in Front Overhead (Not Available with Drop Down Bunk Option - K930)
- 43" Samsung® TV on Televator with Fireplace in Place of Front Overhead TV (Floor Plan 3811 Only)
- Denali/Spruce WiFiRanger LTE
- Everest WiFi System with Aspen Interior Router
- Winegard® Automatic Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (Rts-20B)
- Winegard® Automatic Open Face Satellite Dish - For DISH® HD & Bell HD TV (SK2-100)
- Winegard® Automatic Open Face SWM Satellite Dish - For DIRECTV® Standard/HD (SK2-300)
- Winegard® In Motion Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (RtI-20B)
- Winegard® Rayzar Automatic Digital TV Antenna
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
Loading
Bankston Motor Homes is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, Doc fee ($995). Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @256-533-3100 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
PAYMENTS ARE ESTIMATES WITH 20% DOWN PAYMENT.
BASED ON APPROVED CREDIT PLUS TAX, TITLE AND DOC FEE OF SELLING PRICE.
NOT ALL CUSTOMERS WILL QUALIFY FOR THESE RATES AND TERMS.
*ON THE AMOUNT FINANCED UNDER $32,999 TERMS ARE BASED ON 144 MONTHS AT8.99%
*ON THE AMOUNT FINANCED FROM $33,000 TO $64,999 TERMS ARE BASED ON 180 MONTHS AT 8.99%
*ON THE AMOUNT FINANCED OF $65,000 OR MORE TERMS ARE BASED ON 240 MONTHS AT 8.99%
